Products - High Viscous liquid dispensing / printing (HV)
High Viscous liquid dispensing / printing
High viscous liquids are difficult to manage mostly in a jet dispenser or jet printer. Silver based inks are used to produce prototypes of electronic boards. Viscosities swing from 20 to 500 mPa.s (water is 1mPa.s). With 20 mPa.s steps as low as 50µm are possible.

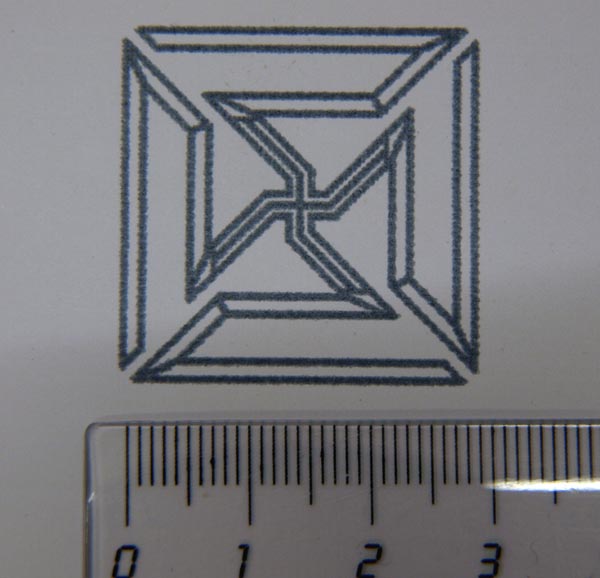

Printing with conductive ink :
a dot every 200µm
a dot every 200µm

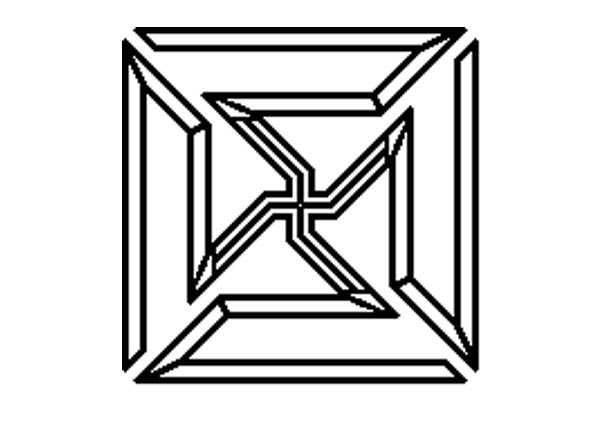

Initial bitmap 160 x 160 dots
