Micro array dispenser

Requirements : produce 1.000 identical micro arrays containing 400 different liquids with dead volumes as low as possible, as fast as possible with good precision. Results : 400 liquids present on the same time in the machine, start volume 1micro litter by tank, 1.000 dots of 0,3 nano litters, 80 faster than piezo dispensers, CV 5%, no liquid loses, just refill from 0,5µl in the tanks.

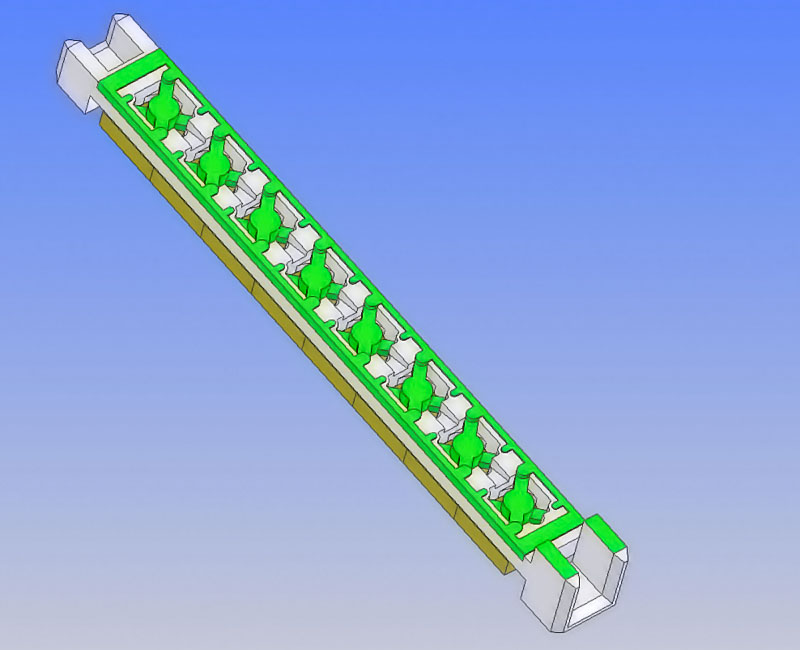

Dispensing tanks ready to be filled on a standard pipetting station (distance between 2 tanks : 9mm
